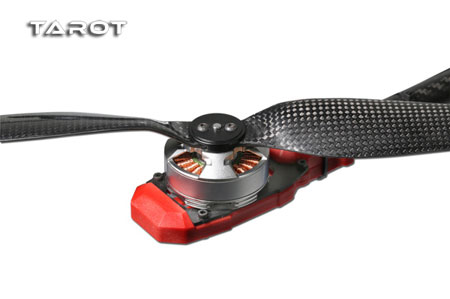

4108/380KV6S efficient multi-rotor disc brushless motor designed for four-and six-axis multi-rotor design, using high-precision CNC machining full production, the table looks flat and smooth trace, excellent balance. The new design of efficient turbofan cover, provides powerful airflow, high magnetic NdFeB rotor refined stator pressure reinforced with high-strength epoxy protective heat, 22P High Flux external rotor motor through a special balance correction, improved motor vibration problems common external rotation caused by poor balance, high-speed alloy steel motor shaft. Upper and lower lid with large size motor speed precision bearings with low friction torque, low power consumption, impact resistance, the instant high-speed radial support and other advantages. 4108/380KV6S new generation brushless motor has passed rigorous dynamic, static, magnetic properties, magnetic temperature demagnetization loss, exercise vibration, noise, load performance engineering technology demonstration. Continuation inherited TAROT brushless motor: long life, high efficiency, low power consumption, low noise, superior control and stability characteristics.
 |
 |
- Peripheral motor diameter: 46mm
- Stator diameter: 40.6M
- Stator: 24 slots
- Motor Poles: 22P
- Diameter: 0.23mm
- Gear shaft mounting diameter: ¢ 4mm
- Motor height: 24mm
- Motor shaft Full length: 32.50mm
- Per volt Speed: 380 RPM / Volt
- Motor Weight: 93G
- Motor resistance: 135 mΩ
- Load Current: 0.5A
- Maximum thrust: 1620g
- 6S4108 brushless motor installation specifications: 27.7mm equilateral triangle
- Propeller installation specifications: the main hole diameter 4mm, side hole diameter 3mm ，center distance 12mm
- 6S4108/380KV brushless motor 93G × 1
- M3 × 6MM cup head screws × 3
- M3 × 8MM round head screws × 2
- Metal rotor mounting piece 2.5G × 1
|
