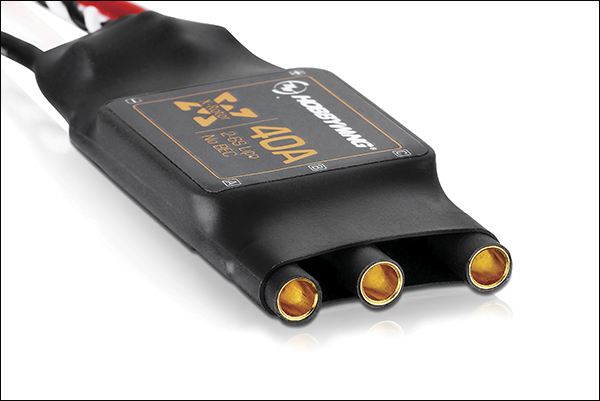

Hobbywing XRotor 40A Brushless ESC for Multicopter/Multi-Rotor

The Xrotor series ESC is a new and independent series hobbywing created based on the performance requirement on multi-rotor aircraft. The XRotor seriers speed controllers have significant improvements in throttle response, compatibility, usability over the existing series ESCs for aircrafts.

• Special core program for multi-rotor controllers greatly improves throttle response.
• Specially optimized software for excellent compatibility with disc-type motors.
• All settings except the timing are preset, making usage simple, highly intelligent and adaptive.
• The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
• Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals)
• Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
• MOSFET with extra-low resistance brings high performance and great current endurance.



• Model: XRotor-40A
• Con. Current: 40A
• Peak Current (10s): 60A
• BEC: No
• LiPo: 2-6S
• Programmable Item: Timing （High/Intermediate)
• Weight: 26g
• Size: 68 x 25 x 8.7
• Typical Applications* (For reference）: 550/650 Class Quadcopter

Note: The "Typical Application" in the above form only refers to quadcopter (with 4 motors). When the ESCs are installed on multi-Rotors with 6/8/16 motors, the applicable axle distance can be larger than the value listed in the above form.
